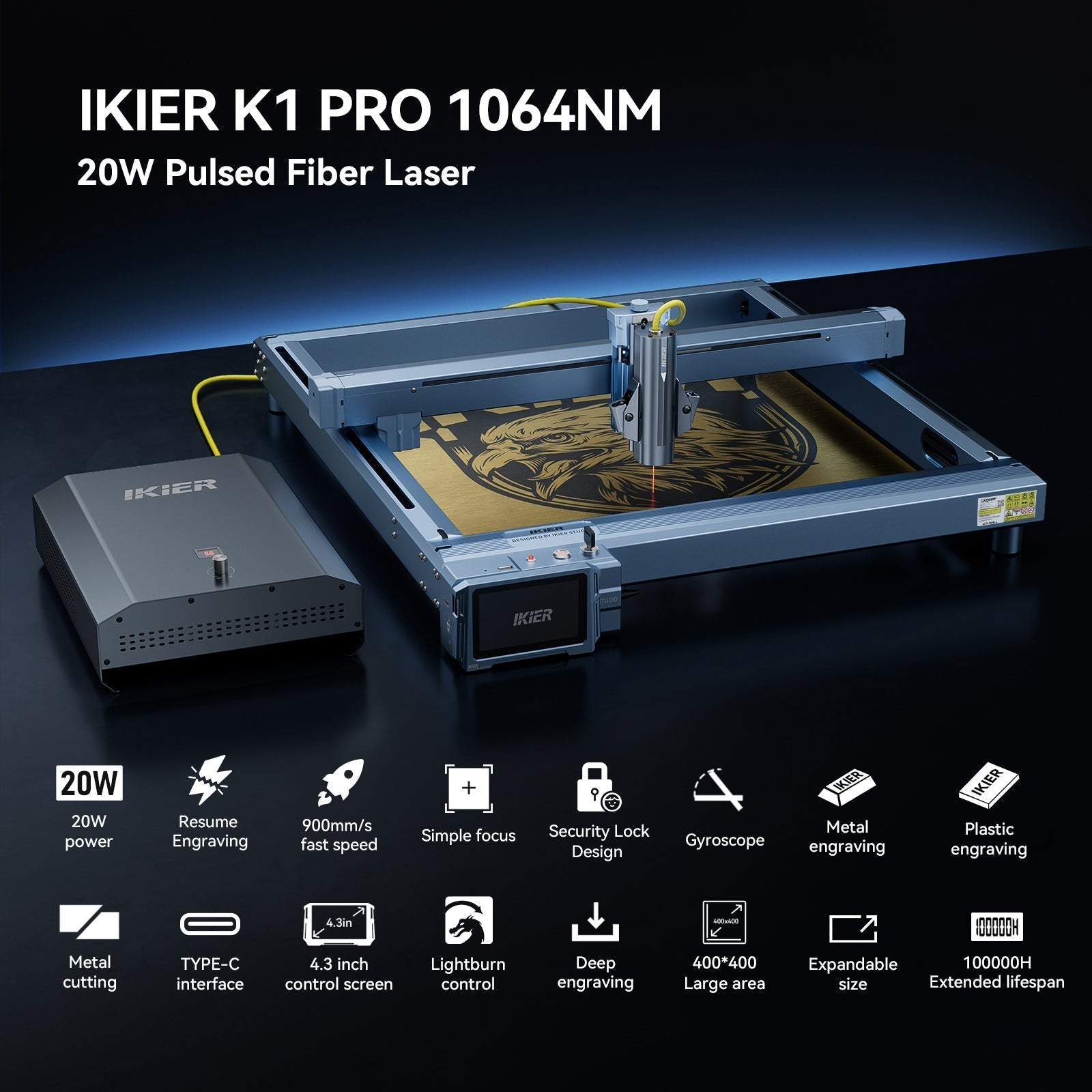

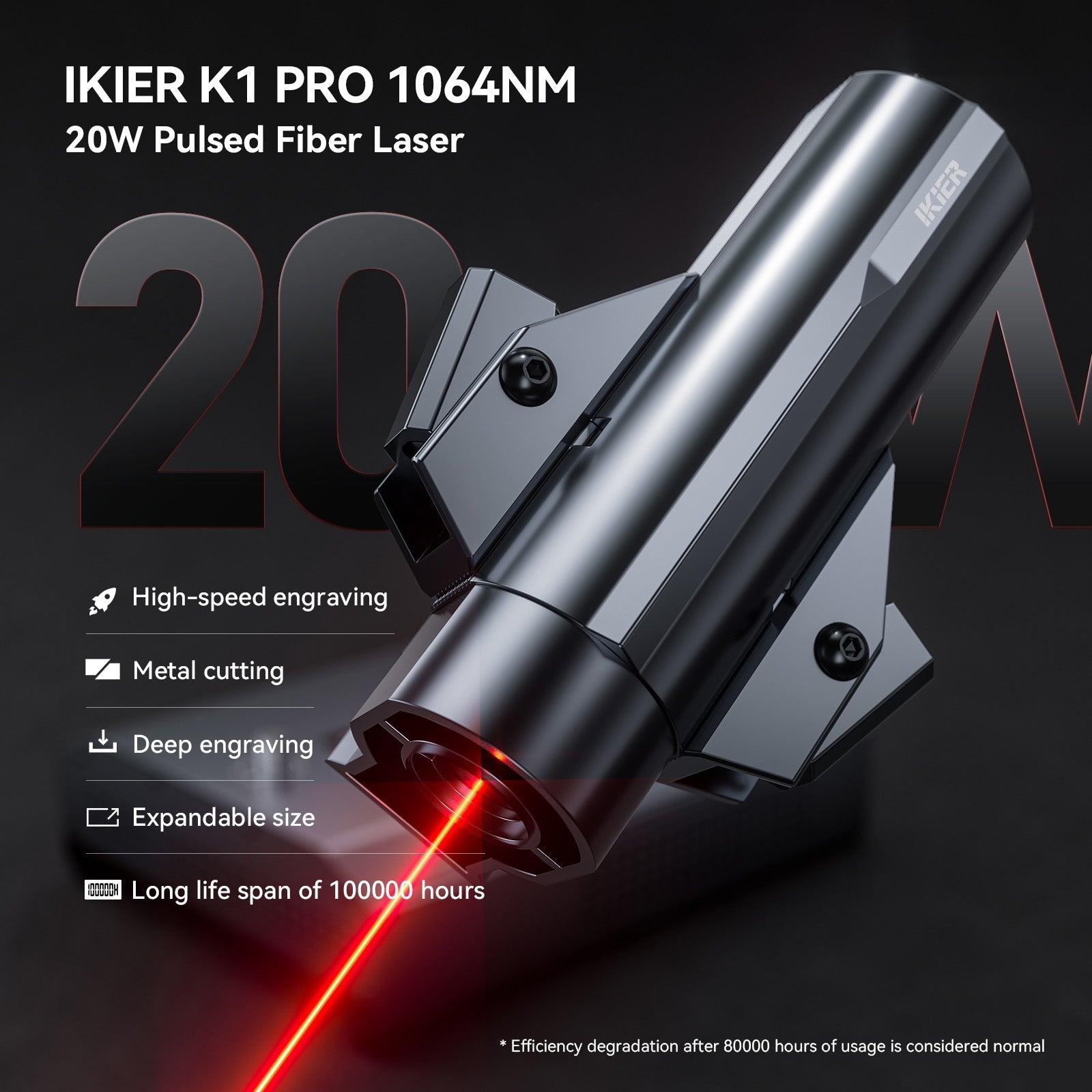

iKier 1064nm 20W Fiber Laser Module for K1 Series Machines

1064nm 20W Fiber Laser Module for Plastic and All-metal engraving

20W Fiber Laser Power: The world's first 1064nm wavelength infrared Fiber laser engraving machine with optical power up to 20W;

Multi-material application: IKIER 20W infrared laser engraving machine, can be applied to all daily metal (copper, iron, aluminum, zinc, silver, etc.) and plastic high-speed fine engraving, but also in black acrylic, leather, ceramics and rock engraving;

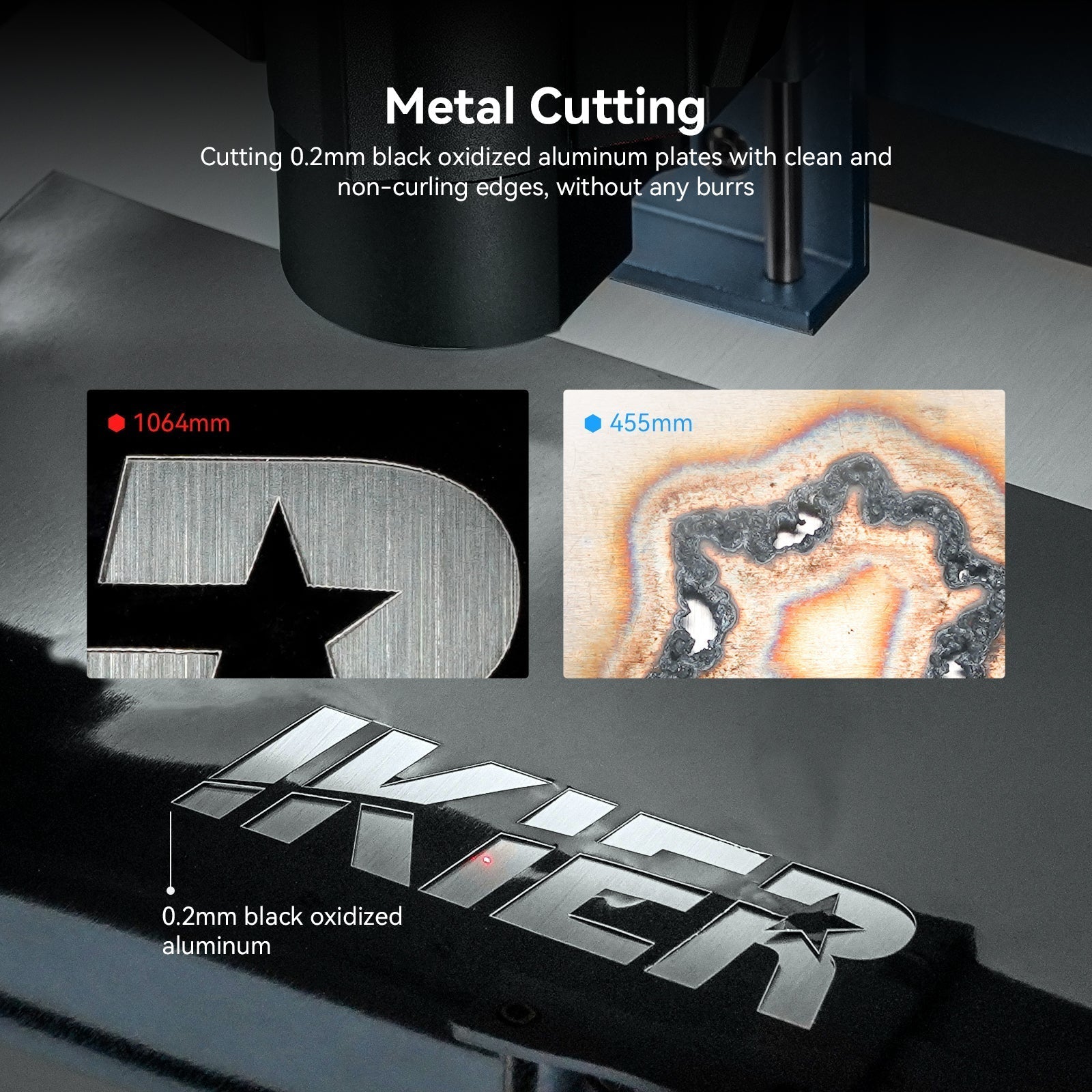

METAL CUTTING: With 20W Fiber Laser power and 0.03*0.06 ultra-fine spot, iKier 1064nm can easily cut 0.2mm aluminum business cards by one-pass;

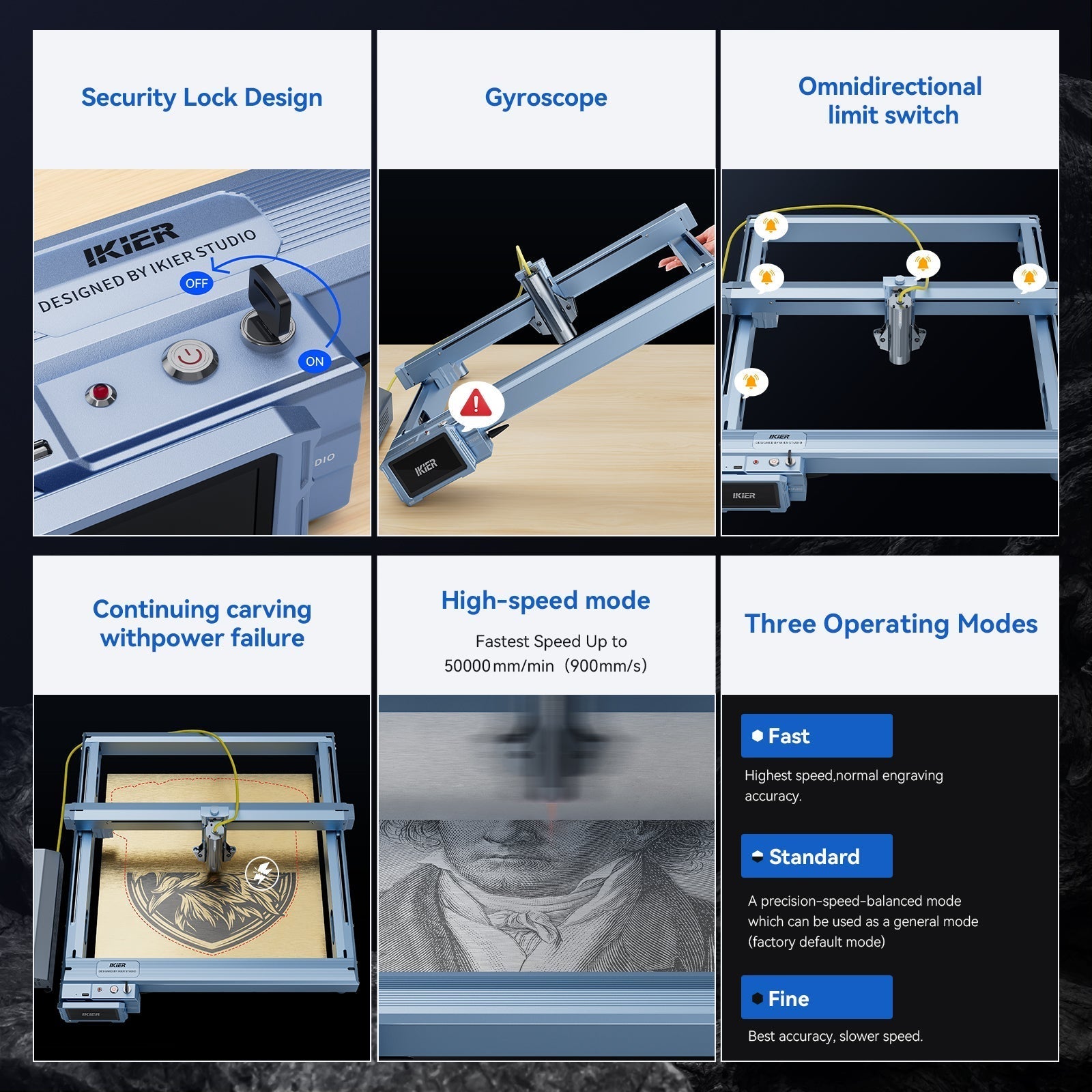

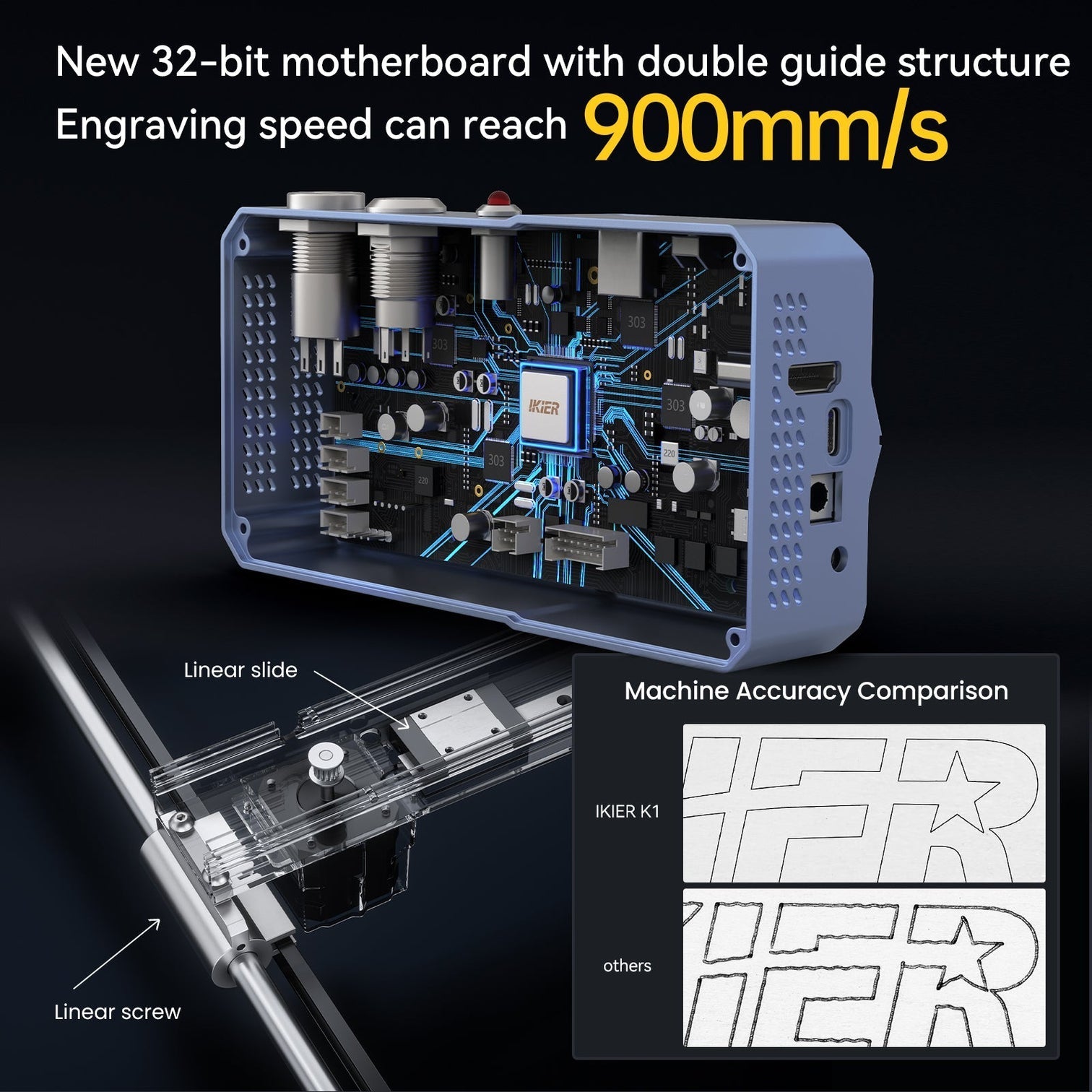

Resume Engraving: In the face of accidental interruption of the work, IKIER self-developed intelligent motherboard can realize the power failure to continue carving function, continue to work without wasting materials;

Ultra-fast working speed: the machine adopts the movement structure of optical axis + linear guide, more can realize 900mm/s ultra-high-speed high-precision operation, and the engraving accuracy can reach 0.01mm under the limit speed, which greatly improves the working efficiency;

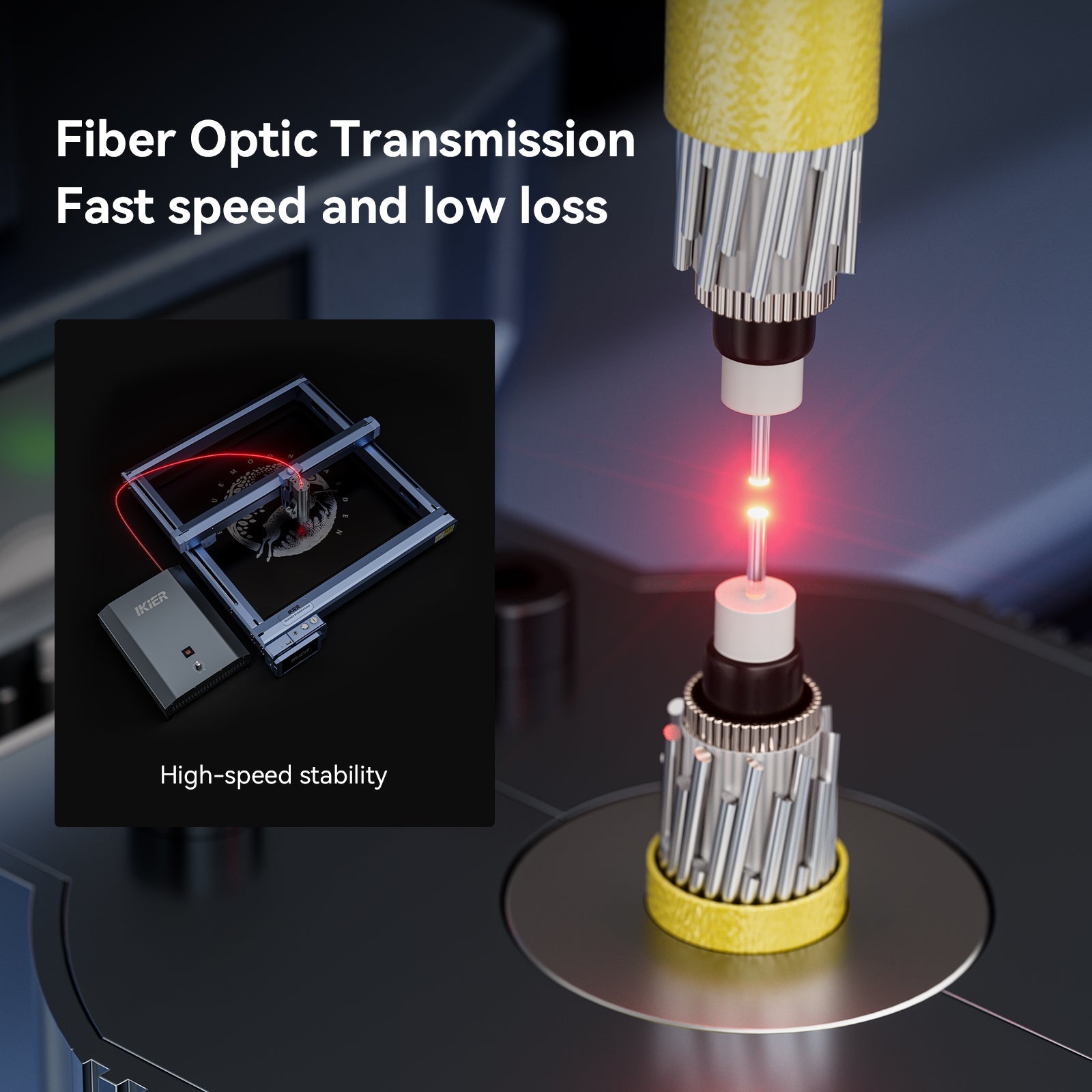

Fiber-optic conduction: The laser energy transmission adopts the fiber-optic conduction method, which can greatly improve the energy transmission efficiency and reduce the energy transmission loss;

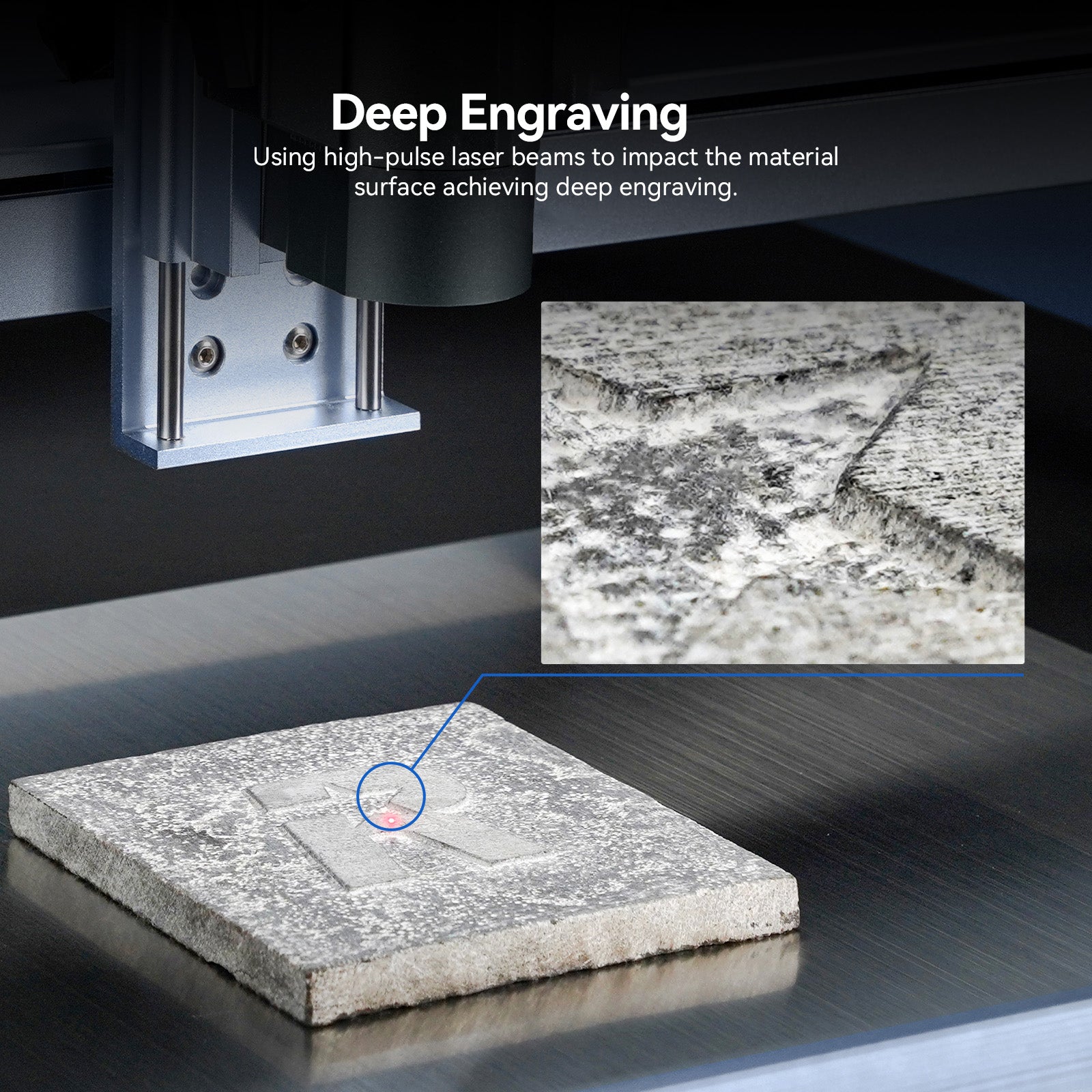

Relief engraving: The 1064nm infrared laser is well suited for deep engraving on neat slate planes, demonstrating a relief effect;

New robust structure: the machine adopts the movement structure of optical axis + linear guide, modular design, 15 minutes quick installation;

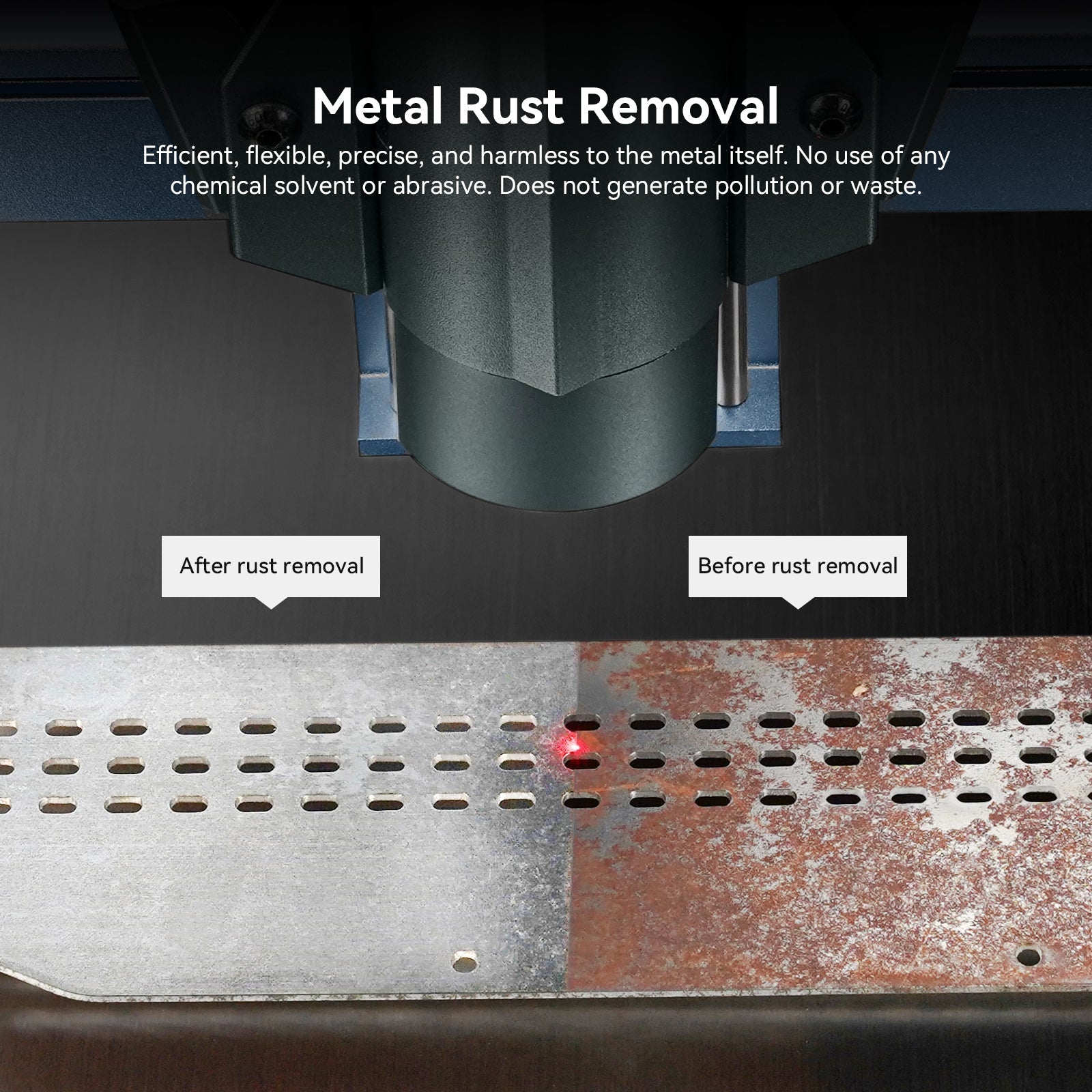

Rust removal: IKIER 1064nm laser, very suitable for removing the surface rust layer of metal, can quickly laser rust removal on metal;

Video:

Parameters:

Product Model: IKIER 20W Fiber Laser Module
Laser output optical power: 20W
Maximum speed of high quality engraving: 900mm/s (54000mm/min)
Laser wavelength: 1064nm
Engraving accuracy: 0.01mm
Repeatability: 0.1mm

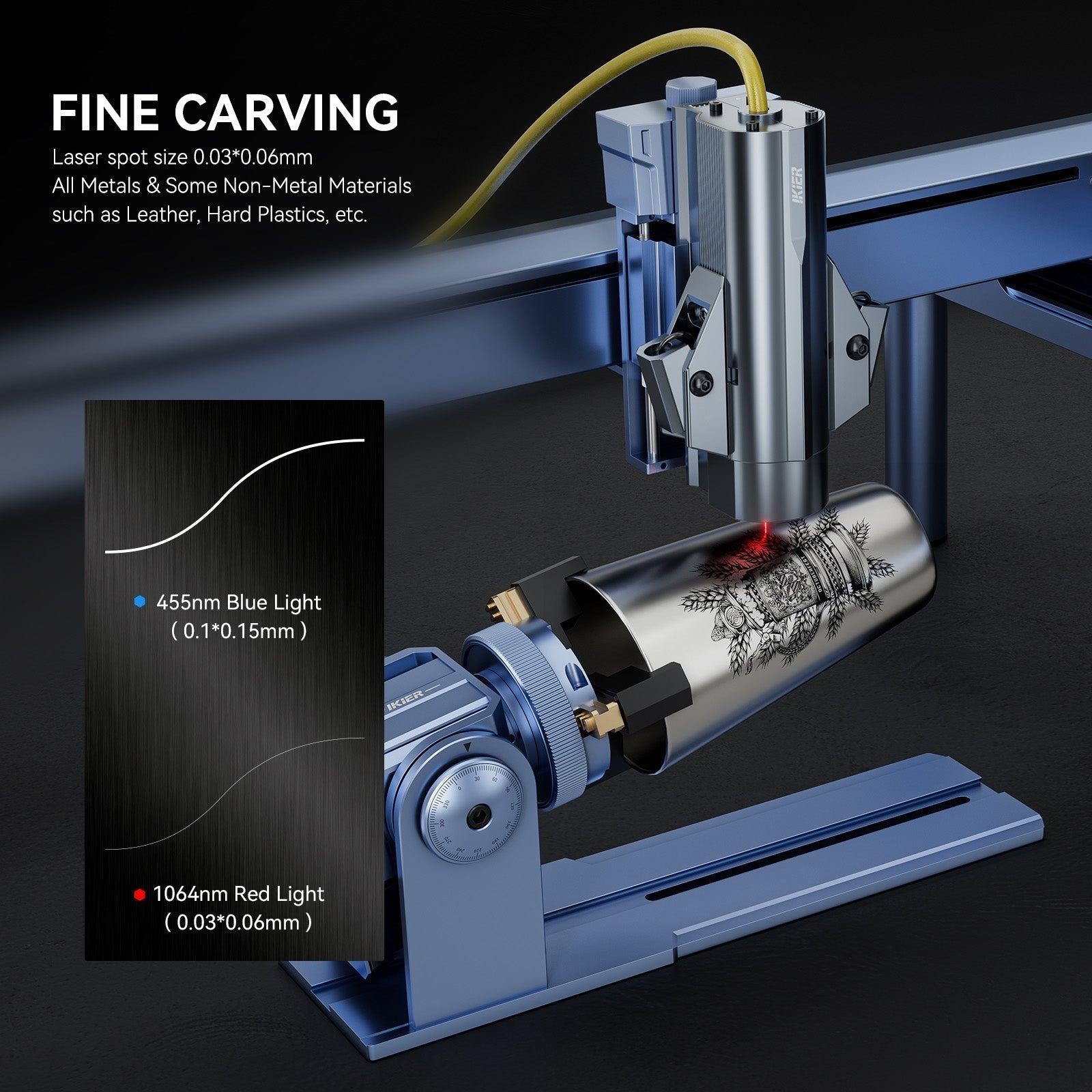

Spot size: 0.03*0.06mm
Limit switches: 3 (1 for X-axis, 2 for Y-axis)
Data transmission mode: Typ-C transmission of computer data, USB interface transmission of offline data, HDMI interface transmission of controller data
Focusing mode: manual adjustment
Controller function: connecting WiFi, power outage renewal carving, anti-tipping, automatic sinking cutting, parameter setting, work progress viewing
Engravable materials: PCB board, acrylic, aluminum oxide, plating layer and lacquer layer metal, 304 mirror stainless steel, glass, ceramics, cotton, slate, leather;
Cuttable materials: thin stainless steel sheet, thin aluminum sheet;

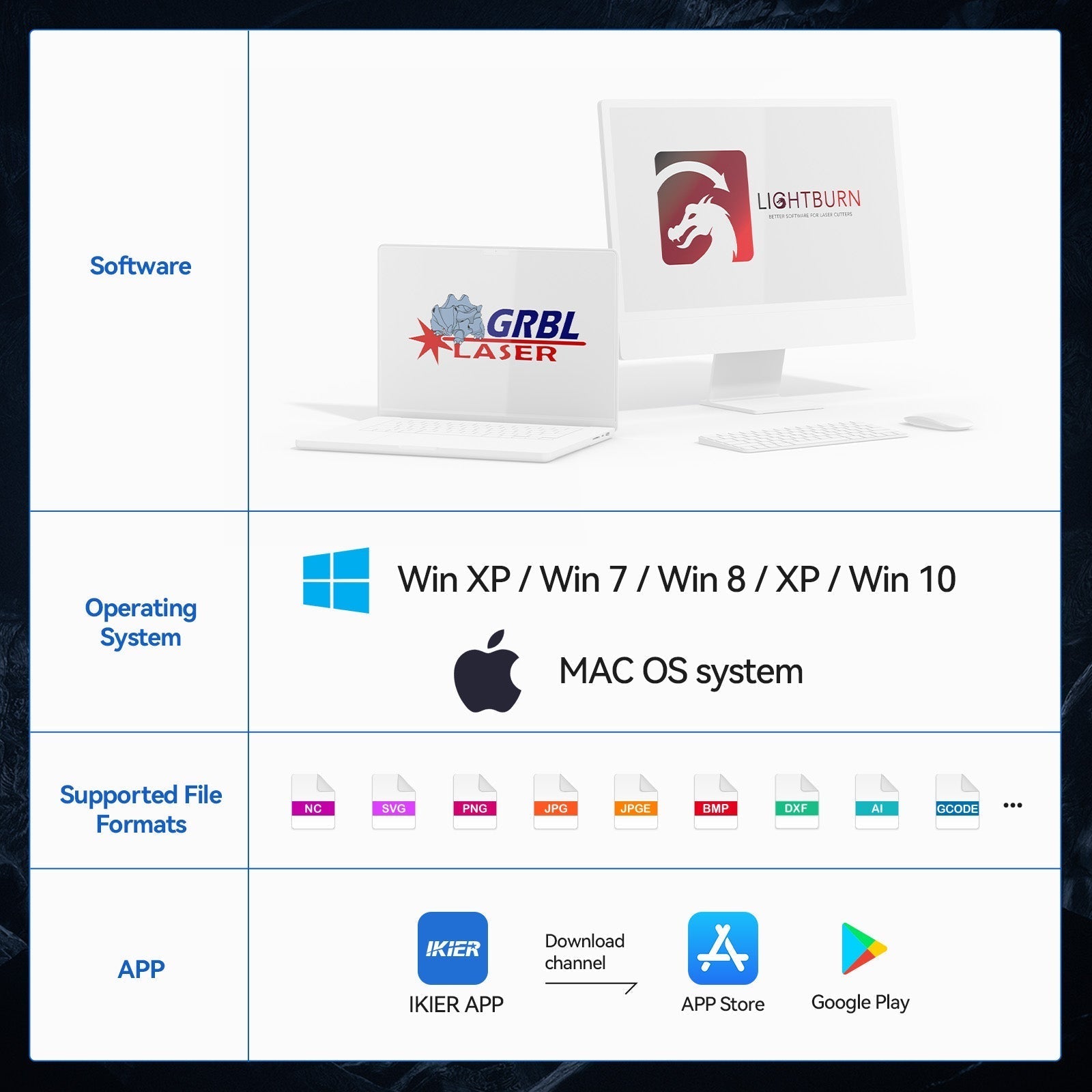

Operating software: LightBurn
Operating system: macOS; Win XP / Win 7 / Win 8 / Win 10 / Win 11
APP Name: IKIER
Supported file formats NC, BMP, JPG, PNG, DXF
Data transfer method: USB connection
Power supply: 24V 7.5A
Certification: CE FCC RoHS FDA PSE

Adaptable machines:

iKier K1 12W, K1 Pro 24W, K1 Ultra 36W, K1 Pro Max 48W
