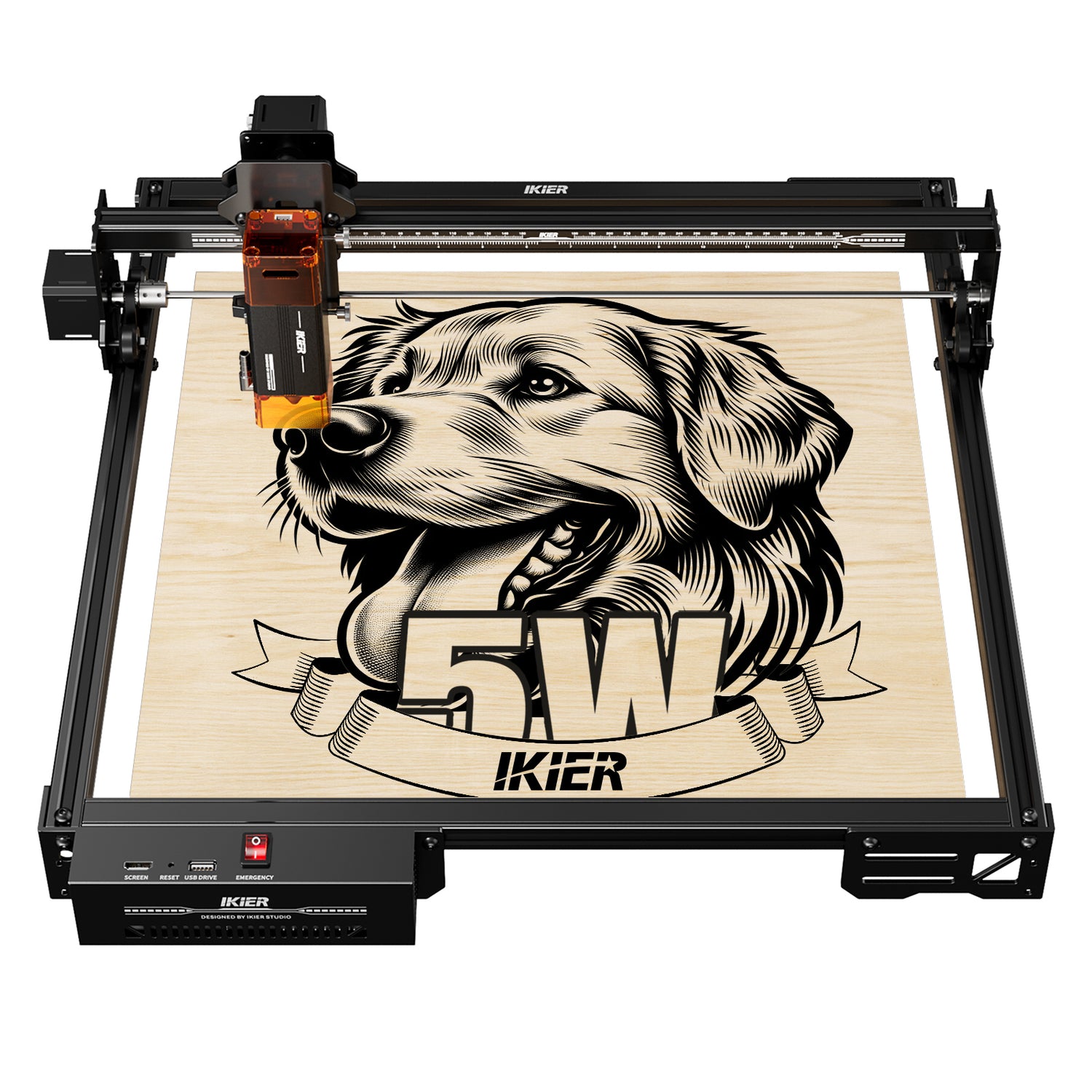

iKier X5 Pro: Upgraded 5W Laser Engraving Machine with Gen2 Spot Compression Technology

iKier X5 Pro upgraded laser engraving machine, 5W laser power, eye protection engraving, 410x380mm engraving area, all aluminum alloy structure, quick installation, high efficiency and high precision metal engraving, thick wood board cutting, can perfectly realize the wood cutting effect of 40W CO₂ laser engraving machine.

Features:

1. New Magnetic Eye Protection Design: The panoramic magnetic eye protection shield effectively protects your eyes, filtering 97% of strong light. You and those around you don’t need to wear goggles and can view the laser engraving, reducing the cost and inconvenience of wearing goggles. The magnetic design also makes cleaning easier.

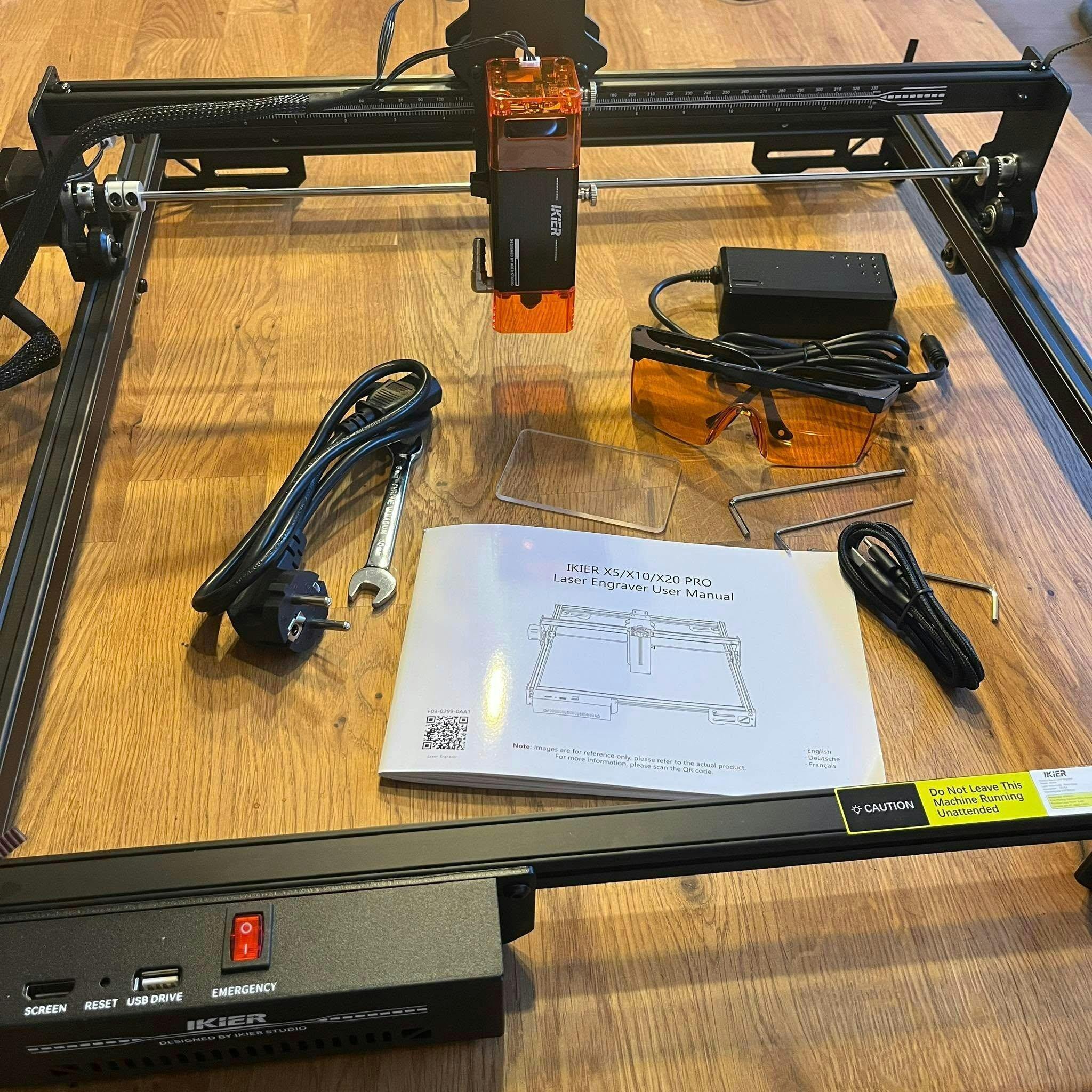

2. Sturdy and Easy-to-Install Structural Design: The full aluminum alloy anodized structure makes the machine more solid and durable, while improving engraving precision. The entire structure is designed for quick assembly, usually completed in 10-20 minutes.

3. Upgraded High-Performance Fixed-Focus Laser: The new laser’s focus spot area is only 0.06*0.06mm, one-third the size of other common lasers. It balances both precise engraving and high-energy cutting. The fixed-focus laser also provides more stable power than zoom lasers.

4. Wide Compatibility: The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, and supports Win XP/Win 7/Win 8/Win 10, as well as Mac systems (LightBurn). Supported file formats for engraving include NC, BMP, JPG, PNG, DXF, etc.

5. Large Size Processing: The 410x380mm large engraving area can meet a variety of engraving needs.

6. Integral Lead Screw: The machine uses an integral lead screw instead of a combined coupler. The stepper motor and lead screw are integrated, allowing for more precise laser movement and more durable couplings.

7. Tilt Alarm: When the machine tilts more than 15°, it will automatically stop working and emit a beeping alert.

8. Next-Generation APP Control: The iKier X5 PRO is compatible with the second-generation Atomstack APP, providing a better user experience and more control functions. It supports offline engraving, allowing you to engrave anytime and anywhere without the need for a computer.

9. Power Loss Recovery: With the second-generation APP, the power loss recovery function is available. If there is an unexpected power outage, the machine can continue engraving from the original position (as long as the relative position between the engraving machine and the workpiece remains unchanged).

10. Laser Sintering Temperature: The laser sintering temperature can reach up to 600°C.

Specification

Product Model: iKier X5 Pro
Engraving Size: 410*380mm
Engraving Materials: Wood, Bamboo, Cardboard, Plastic, Leather, PCB Board, Anodized Aluminum, Non-reflective Electroplated and Painted Metals, 304 Mirror Stainless Steel, Glass, Ceramic, Cotton Fabric, Slate
Cutting Materials: Cardboard, Non-woven Fabric, Wood, Acrylic, Certain Thin Plastics, Sponge
Electric Power Output: 40W
Laser Output Power: 5.5-6W
Laser Wavelength: 455±5nm
Engraving Precision: 0.01mm
Focusing Method: Fixed-focus Laser, No Need for Focusing Adjustment
Limit Switches: 2 (1 on the X-axis, 1 on the Y-axis)
Laser Protection Cover: Equipped with a protective cover to safeguard users' eyes, eliminating the need for additional protective goggles. Also prevents pets from reaching the laser point.
Operating Software: LaserGRBL, LightBurn, Supports Win XP / Win 7 / Win 8 / Win 10 systems
Supported File Formats: NC, BMP, JPG, PNG, DXF
Data Transfer Method: USB Connection
Power Supply: International Standard Power Supply (Input: 100-240V AC, 50/60Hz, Output: 12V 3A)
Certifications: CE, FCC, RoHS, FDA, PSE

Precautions:

1. Always install the laser protection cover when operating the laser engraver. If not installed, protective goggles must be worn.
2. Do not touch the laser with your hands as it may cause burns.
3. Avoid subjecting the machine to strong impacts.
4. Children under 14 years of age are prohibited from using this product; adult supervision is required for children over 14 years of age.
5. Do not direct the laser onto any mirror-like reflective surfaces, as this could cause injury to the operator or damage the laser.
