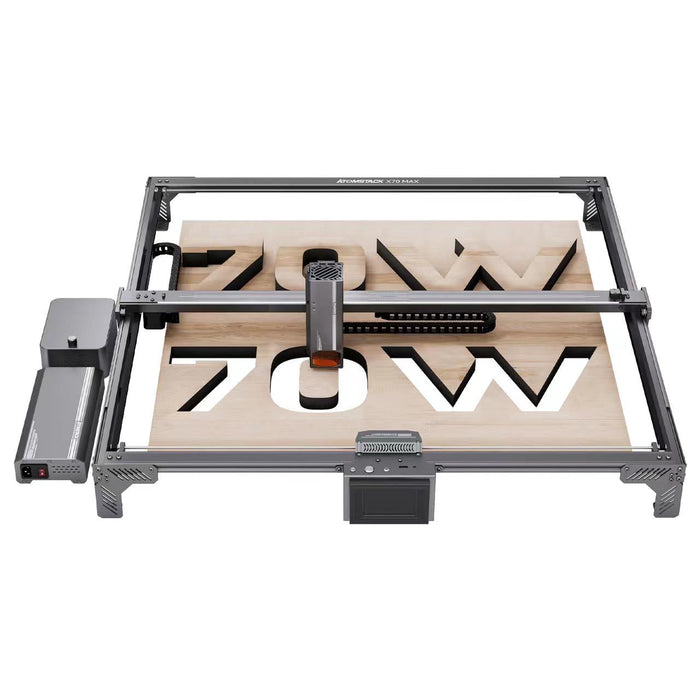

Atomstack A70/X70 Max: 360W laser engraver with F60 Air Assist Kit, 850*800mm engraving size

Features:

1. Strong cutting power: can cut 25mm black acrylic, 12mm MDF board, 30mm pine board, 0.3mm stainless steel sheet
2. Max Version Processing Area: The most professional blue light laser cutting and engraving machine, standard 800*850mm large working area, frame can accommodate materials up to 1045*950mm with four support feet and fixed holes for stable operation on the workbench.
3. New motion structure: To ensure stable high-speed operation, the machine's three axes adopt a new two-axis guide rail structure with a low center of gravity, resulting in stable operation at high speeds, quiet operation, and suitability for heavy engraving and cutting work.
4. Offline operation: The product is equipped with a second-generation smartboard and a control screen and can operate offline without a computer or phone.
5. Standard high-flow air support: Maximum 60L/min air support ensures flawless cutting work, prevents yellowing of the cut line surface, and extends the laser's lifespan.
6. Multiple usage scenarios: can work on reflective metals, ceramics, black acrylic; supports woodworking, painting, DIY creation, posters, metal marking, clothing design
7. Fast accuracy maintenance: at a high-speed operation of 400 mm/s, an accuracy of 0.01 mm can be maintained.
8. Dual-mode focus setting: supports manual and automatic focus setting, closes the focus setting within 8 seconds.

9. Automatic flame alarm: triggers an alarm and stops operation if the wavelength points of the flame spot in the working area exceed 35%, accurately and quickly.
10. Intelligent cooling system: opens the double-layered air guide hood for air support, automatically switching to air support during cutting for better heat dissipation and cutting effects.
11. Power-off resume function: In the event of a power outage during creation, the unfinished creation will resume when power is restored.

Technical data:

Product model: Atomstack X70 Max
Device dimensions: 1056*1168*230mm
Engraving size: 850*800mm
Working principle: Engraving / Cutting
Engraving materials: wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective galvanized and lacquered metal, 304 mirror stainless steel, glass, ceramic, cotton, slate;
Cutting of materials: Thin sheet steel, cardboard, non-woven fabric, wood, acrylic, thin plastic sheets, sponge;
Input power: 360W
Output power: 70-77W, 35-39W
Maximum speed: 400mm/s (24000mm/min)
Laser wavelength: 455±5nm
Engraving accuracy: 0.01mm
Repeatability: 0.1 mm
Spot size: 0.12*0.18mm (70W) / 0.08mm*0.12mm (35W)
Transfer method: USB transfer
Focus adjustment method: Automatic focus + manual focus
Screen control: 4.3 inches
Connectivity support: Type-C, mobile WiFi, touchscreen
Supported systems: iOS, Android, Windows, Mac

Operating software: LaserGRBL, LightBurn, Atomstack Studio
Airflow: 0-60 L/min continuously adjustable
Power supply: Input 100-240V AC, 50/60Hz, Output 12V 5A
Quality certifications: CE, FCC, RoHS, FDA, PSE

Package:
1 * Atomstack X70 Max 360W machine
1 * 360W switching power supply
1 * F60 Air Support Kit
1 * Tax terminal
